Reading Time: 13 mins
Creating an impossible checkbox is one of the most entertaining and challenging web animation projects you can build. This interactive element features an animated bear that emerges to prevent users from checking a checkbox, combining React state management, GSAP animations, and creative CSS styling. In this comprehensive guide, we’ll walk through building this engaging project step by step.
An impossible checkbox is an interactive web element that appears to be a standard toggle switch but includes animated obstacles that prevent easy activation. Our implementation features a cute animated bear that physically emerges from behind the interface to turn off the switch whenever users attempt to check it.
This creative coding project demonstrates advanced web animation techniques while providing an entertaining user experience. The bear’s behavior becomes progressively more animated and “frustrated” with each attempt, creating a story-like interaction that keeps users engaged.
To create this impossible checkbox animation, you’ll need several key technologies working together. The project uses React for component management, GSAP for professional animations, and the Web Audio API for sound effects.
const {
React: { useState, useRef, useEffect, Fragment },
ReactDOM: { render },
gsap: {
set,
to,
timeline,
utils: { random },
},
} = window
The project relies on:
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Impossible Checkbox Animation</title>
<script src="https://unpkg.com/react@17/umd/react.development.js"></script>
<script src="https://unpkg.com/react-dom@17/umd/react-dom.development.js"></script>
<script src="https://cdnjs.cloudflare.com/ajax/libs/gsap/3.12.2/gsap.min.js"></script>
</head>
<body>
<div id="app"></div>
</body>
</html>
The impossible checkbox project consists of several interconnected components that work together to create the complete animation experience. Let’s examine the full JavaScript implementation:
const rootNode = document.getElementById('app')
const armLimit = random(0, 3)
const headLimit = random(armLimit + 1, armLimit + 3)
const angerLimit = random(headLimit + 1, headLimit + 3)
const armDuration = 0.2
const bearDuration = 0.25
const checkboxDuration = 0.25
const pawDuration = 0.1
These variables control the animation progression and timing. The random limits ensure each user gets a slightly different experience, making the interaction feel more organic and unpredictable.
const SOUNDS = {
ON: new Audio('https://assets.codepen.io/605876/switch-on.mp3'),
OFF: new Audio('https://assets.codepen.io/605876/switch-off.mp3'),
GROAN: new Audio('https://assets.codepen.io/605876/bear-groan.mp3'),
}
SOUNDS.GROAN.playbackRate = 2
The audio system includes three distinct sounds that provide auditory feedback for different interaction states. The bear groan is played at double speed to create a more comical effect.
The main React component manages all state and user interactions. Here’s the complete component structure:
const App = () => {
const [checked, setChecked] = useState(false)
const [count, setCount] = useState(1)
const bearRef = useRef(null)
const swearRef = useRef(null)
const armWrapRef = useRef(null)
const pawRef = useRef(null)
const armRef = useRef(null)
const bgRef = useRef(null)
const indicatorRef = useRef(null)
The component uses two primary state variables:
Multiple useRef hooks provide direct access to DOM elements for GSAP animations, ensuring smooth performance without unnecessary re-renders.
const onHover = () => {
if (Math.random() > 0.5 && count > armLimit) {
to(bearRef.current, bearDuration / 2, { y: '40%' })
}
}
const offHover = () => {
if (!checked) {
to(bearRef.current, bearDuration / 2, { y: '100%' })
}
}
const onChange = () => {
if (checked) return
setChecked(true)
}
These handlers create subtle preview animations when users hover over the checkbox, building anticipation for the main interaction.
The bear character is the centerpiece of this impossible checkbox animation. It’s created using detailed SVG graphics that scale perfectly across all device sizes.
The bear is constructed from multiple SVG paths and shapes:
<svg
ref={bearRef}
className="bear"
viewBox="0 0 284.94574 359.73706"
preserveAspectRatio="xMinYMin">
<g id="layer1" transform="translate(-7.5271369,-761.38595)">
<g id="g5691" transform="matrix(1.2335313,0,0,1.2335313,-35.029693,-212.83637)">
{/* Bear body, head, ears, snout components */}
</g>
</g>
</svg>

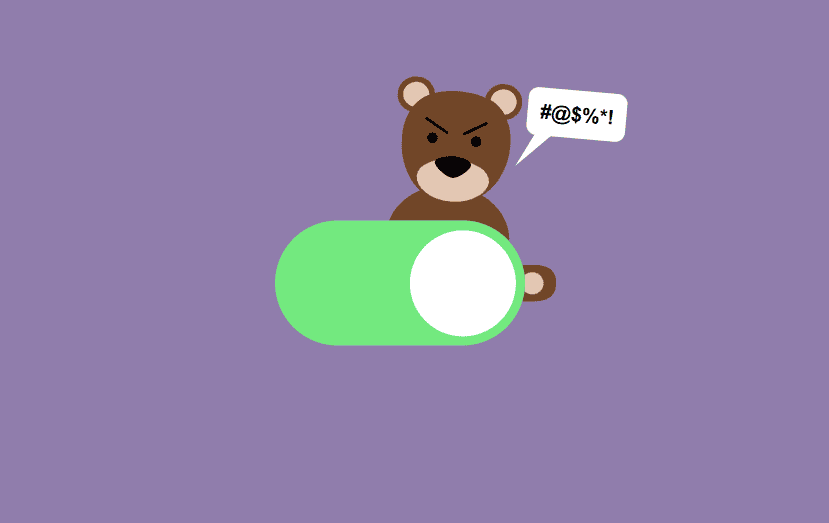

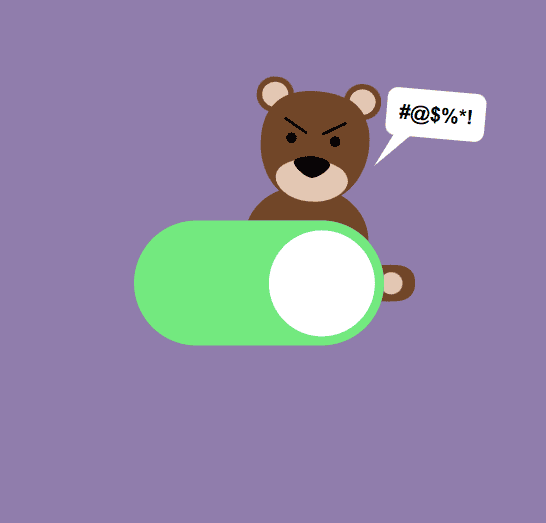

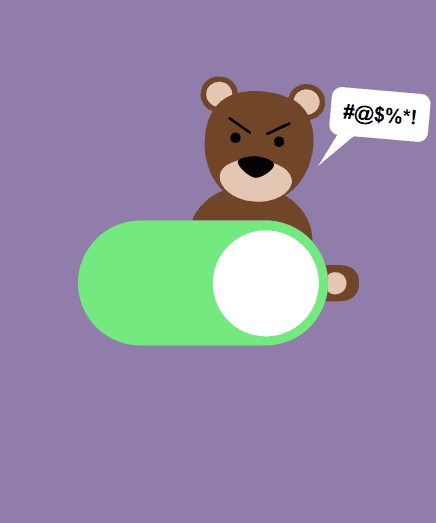

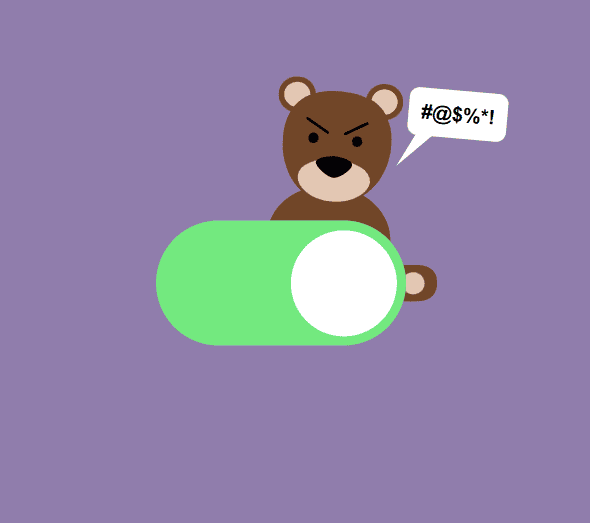

The bear’s appearance changes based on the interaction count. Initially calm, it becomes increasingly animated and eventually shows anger:
{count >= angerLimit && (
<Fragment>
<path
id="path4396"
d="m 92.05833,865.4614 39.42665,22.76299"
style={{
stroke: '#000000',
strokeWidth: 4.86408424,
strokeLinecap: 'round',
strokeLinejoin: 'round',
strokeMiterlimit: 4,
strokeOpacity: 1,
}}
/>
<path
style={{
stroke: '#000000',
strokeWidth: 4.86408424,
strokeLinecap: 'round',
strokeLinejoin: 'round',
strokeMiterlimit: 4,
strokeOpacity: 1,
}}
d="m 202.82482,865.4614 -39.42664,22.76299"
id="path4400"
/>
</Fragment>
)}
These additional SVG paths create angry eyebrows that only appear after multiple interaction attempts, adding personality to the character.
<div ref={armWrapRef} className="bear__arm-wrap">
<svg ref={armRef} className="bear__arm" viewBox="0 0 250.00001 99.999997">
{/* Arm SVG structure */}
</svg>
</div>
<div ref={pawRef} className="bear__paw" />
The arm and paw are separate elements that animate independently, allowing for complex, layered movements that create realistic interaction with the checkbox.
The checkbox component combines accessibility with custom styling:
<div className="checkbox" onMouseOver={onHover} onMouseOut={offHover}>
<input type="checkbox" onChange={onChange} checked={checked} />
<div ref={bgRef} className="checkbox__bg" />
<div ref={indicatorRef} className="checkbox__indicator" />
</div>
The implementation maintains accessibility by using a real HTML checkbox input, ensuring:
The visual appearance is created through CSS-styled divs that overlay the hidden checkbox input, providing complete control over the appearance while maintaining functionality.
Audio feedback significantly enhances the user experience. The Web Audio implementation includes:
const SOUNDS = {
ON: new Audio('https://assets.codepen.io/605876/switch-on.mp3'),
OFF: new Audio('https://assets.codepen.io/605876/switch-off.mp3'),
GROAN: new Audio('https://assets.codepen.io/605876/bear-groan.mp3'),
}
SOUNDS.GROAN.playbackRate = 2
Sounds are triggered at specific points in the animation timeline:
The audio timing is carefully synchronized with visual animations to create a cohesive, professional experience.
The core animation logic uses GSAP’s timeline system to coordinate complex, multi-element animations:
const grabBearTL = () => {
let bearTranslation
if (count > armLimit && count < headLimit) {
bearTranslation = '40%'
} else if (count >= headLimit) {
bearTranslation = '0%'
}
const onComplete = () => {
setChecked(false)
setCount(count + 1)
}
let onBearComplete = () => {}
if (Math.random() > 0.5 && count > angerLimit)
onBearComplete = () => {
SOUNDS.GROAN.play()
set(swearRef.current, { display: 'block' })
}
}
The animation timeline coordinates multiple elements:
const base = armDuration + armDuration + pawDuration
const preDelay = Math.random()
const delay = count > armLimit ? base + bearDuration + preDelay : base
Animation complexity increases with each interaction, creating a progressive narrative that keeps users engaged through multiple attempts.
The visual design uses modern CSS techniques for professional appearance:
.bear {
width: 100%;
background: transparent;
transform: translate(0, 100%);
}
.bear__wrap {
width: 100px;
left: 50%;
position: absolute;
top: 50%;
transform: translate(-15%, -50%) rotate(5deg) translate(0, -75%);
background: transparent;
}
The CSS uses transform properties for optimal animation performance:
.checkbox {
border-radius: 50px;
height: 100px;
position: fixed;
width: 200px;
z-index: 5;
top: 50%;
left: 50%;
transform: translate(-50%, -50%);
}
The design scales appropriately across different screen sizes while maintaining the animation’s integrity.
.checkbox__indicator:after {
content: '';
border-radius: 100%;
height: 85%;
width: 85%;
background: #fff;
position: absolute;
top: 50%;
left: 50%;
transform: translate(-50%, -50%);
}
Attention to details like border radius, shadows, and color transitions creates a polished, professional appearance.
The component’s state management strategy balances simplicity with functionality:
const [checked, setChecked] = useState(false)
const [count, setCount] = useState(1)
Two primary state variables control the entire interaction:
useEffect(() => {
const showTimeline = () => {
timeline({
onStart: () => SOUNDS.ON.play(),
})
.to(bgRef.current, { duration: checkboxDuration, backgroundColor: '#2eec71' }, 0)
.to(indicatorRef.current, { duration: checkboxDuration, x: '100%' }, 0)
.add(grabBearTL(), checkboxDuration)
}
if (checked) showTimeline()
}, [checked, count])
The useEffect hook triggers animations when state changes, ensuring smooth coordination between React state and GSAP animations.
One of the most engaging aspects of this impossible checkbox is how the animation becomes more complex with each interaction attempt:
This progression creates a narrative experience that rewards user persistence with increasingly entertaining animations.
To ensure smooth animation performance across all devices:
const onComplete = () => {
setChecked(false)
setCount(count + 1)
}
State updates are batched and optimized to prevent unnecessary re-renders during animations.
Issue: Choppy or laggy animations Solution: Ensure you’re using CSS transforms rather than changing layout properties. Check for memory leaks in GSAP timelines.
Issue: Bear doesn’t appear correctly Solution: Verify SVG viewBox settings and CSS positioning. Check z-index layering.
Issue: Sounds don’t play Solution: Modern browsers restrict autoplay. Ensure user interaction triggers sound playback.
Issue: Audio timing problems Solution: Preload audio files and synchronize with animation timeline events.
Issue: Checkbox state gets stuck Solution: Verify the onChange handler and ensure proper state reset in animation completion callbacks.
This impossible checkbox animation works across modern browsers:
Creating an impossible checkbox demonstrates advanced web animation techniques while providing an entertaining user experience. This project combines React state management, GSAP animations, SVG graphics, and Web Audio API to create a professional-quality interactive element.
The key learning outcomes include:
For developers looking to expand their animation skills, consider exploring our related tutorials on creating interactive games with Scratch, building Python games, or learning block coding fundamentals.
This impossible checkbox project serves as an excellent foundation for more complex interactive animations. Whether you’re building portfolio pieces, educational tools, or entertainment applications, these techniques will help you create engaging, memorable user experiences.
The complete code implementation demonstrates how modern web technologies can work together to create sophisticated interactions that go far beyond basic functionality. By understanding the relationship between React state, GSAP animations, and user interactions, you can build compelling web experiences that truly engage your audience.
